Product details:

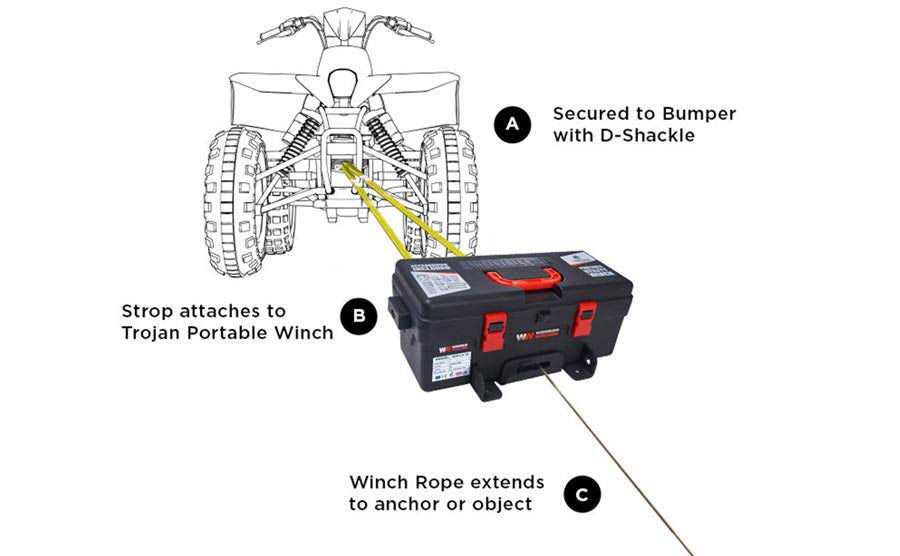

DESCRIPTION The Trojan Portable Utility Winch is a complete winch solution in a convenient kit, that includes a 4,000 lb pulling winch on a unique powder-coated winch platform, housed in a compact, easy-to-carry composite toolbox. The kit is easy to store, use and repack. The trojan is easily portable and requires no installation or additional winch support; but can be permanently mounted on a trailer and used as a utility winch if desired. Included with the trojan Quick connect cable with alligator clips Winch gloves made of heavy leather with palm 7,2t (16.000lb) pulley 3,6m (12ft) handheld remote control 3x 9t D-shackles 2x 2.4m heavy duty harnesses with a load capacity of 4t (8,000lb). Outstanding features 4000lb (1.8t) pulling force Built in 1/4 inch hardened steel plate Can be permanently mounted Quick plug and play functionality Specifications Pulling force 4000LB (1814kg) Engine 12v: 2.4kW/3.2hp Gearbox 166:1 Drum size 50,4 x 82mm Rope ? x L 5.4mm x 12.8m dimensions 506 x 304,5 x 192,2mm Bolt circle 210 x 234mm Weight 20,5kg Rope layer Pulling force (lbs/kg) Rope on drum ft(m) 1 4000 (1814) 8,5 (2,6) 2 3351 (1520) 18,7 (5,7) 3 2883 (1307 29,8 (9,1) 4 2530 (1147) 42,0 (12,8) Pulling force lbs (kg) Pulling speed 12v m/min. Current a 12v 0 4,4 28 1000 (454) 3 80 2000 1135) 2,2 150 4000 (1814) 1,5 190
